The UPDI-3, is a simple add-on board allowing the programming of the new AVR microcontroller from Microchip. The board works as bridge between the UPID target, and a serial communication. The serial communication can from different sources, eg. an FTDI cable or the FTDI-USB. The board has been designed in KiCAD by using the fab libraries.

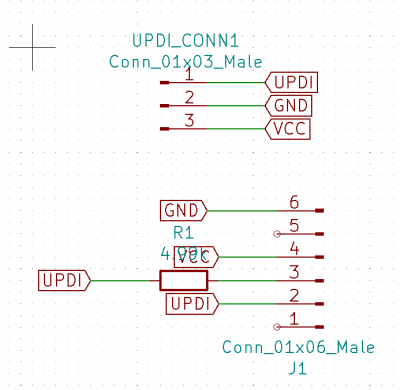

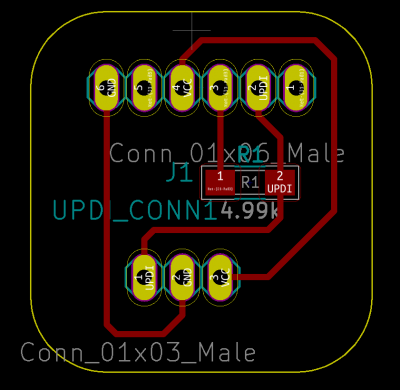

Below the board schematic and layout :

Here the UPDI-3 pinout:

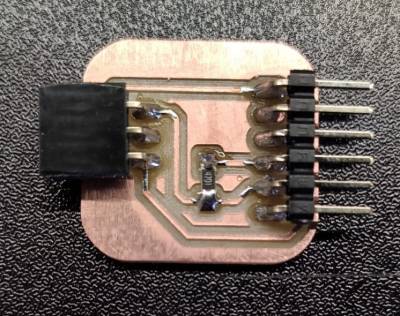

Here the soldered board , useful to look up which components are needed:

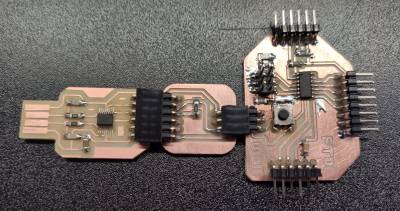

And here an example on how to connect the UPDI-3 board between a target and the FTDI-USB:

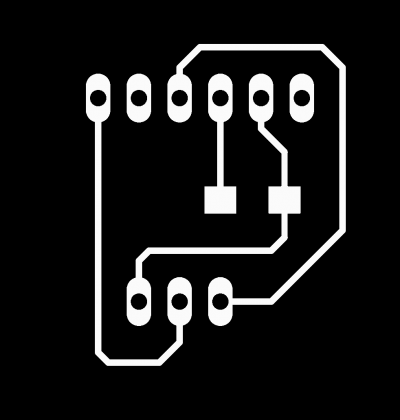

  • Traces PNG:

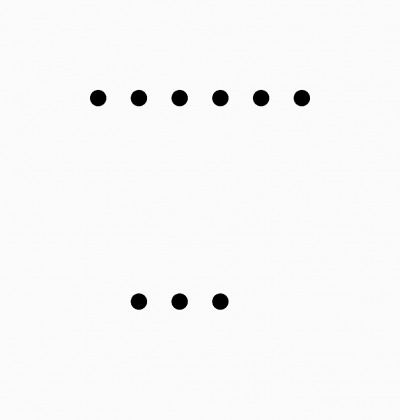

  • Holes PNG:

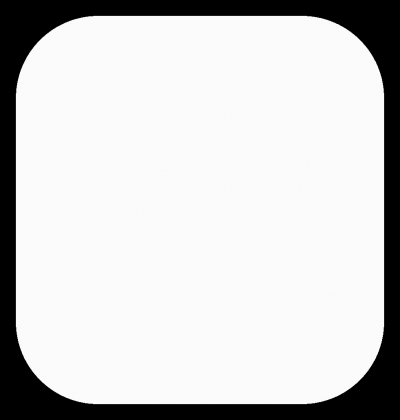

  • Cut PNG:
